Description

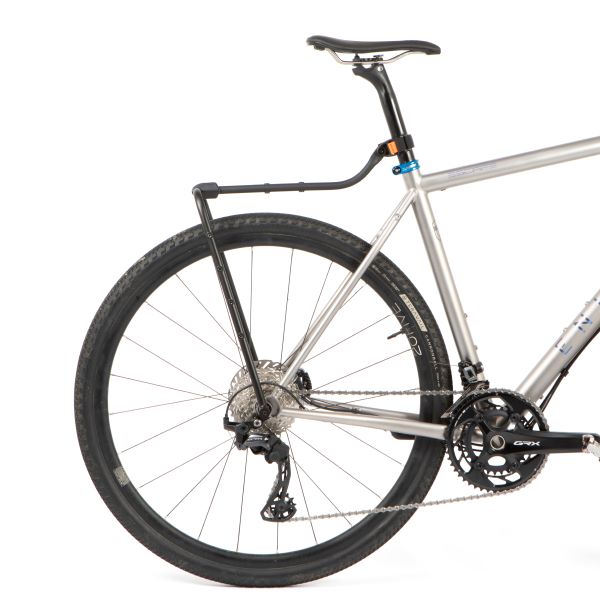

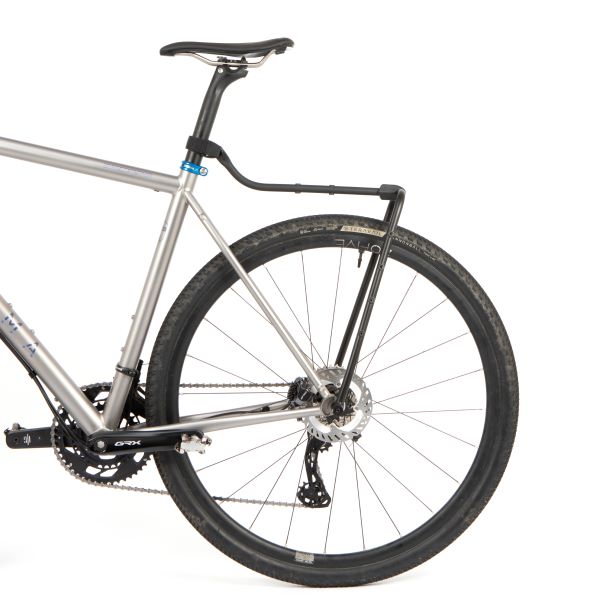

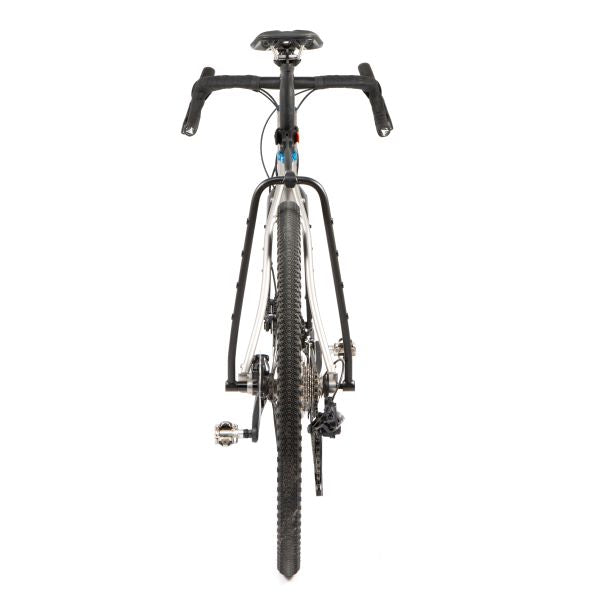

We have applied all the principles of engineered minimalism that are the hallmarks of Restrap’s luggage range to our Switch Rack: lightweight construction, durable materials, quick and simple fitment/removal.

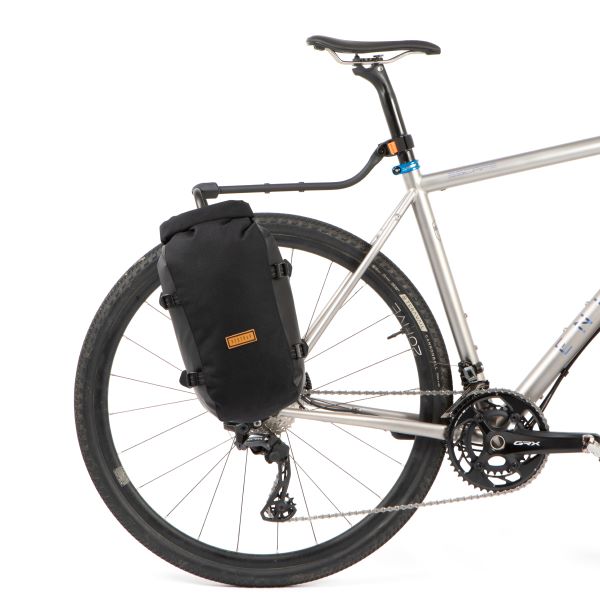

The heart of Restrap’s Switch system; the Switch Rack is compatible with the Restrap Switch Panniers and all other Switch Multimount products as well as any product or accessory that uses 64mm-spaced mounting points, like bottle cages etc.
All mounting hardware included.
Features:
- Thru-axle mounted aluminium alloy rack

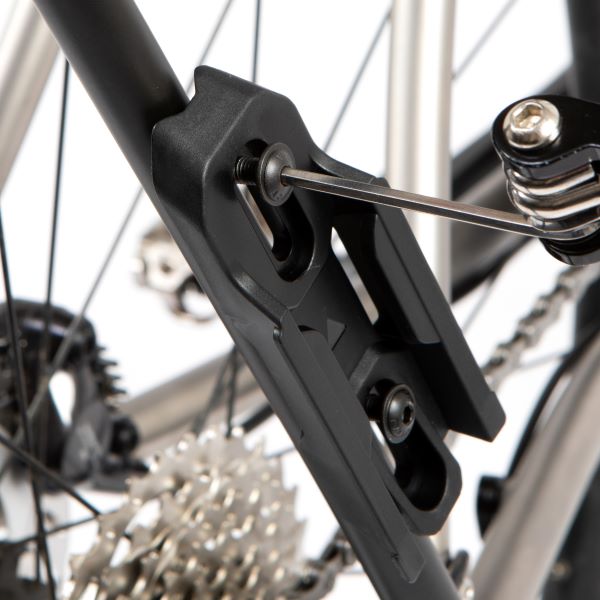

- 64mm spaced bolting on the rack legs for cages, Restrap Switch Panniers or any other compatible accessories
- Top bar will be compatible with Restrap Switch ecosystem new products
- High Grade 7075-T6 aluminium 12mm diameter axles in 1mm, 1.5mm and 1.75mm thread pitch options
- Compatible with 142mm and 148mm Boost spacing
- Spare axles available separately
- Silicone Molded Feet
- Three Strap Slots Per Side
- Fits Restrap Switch Rack
- Integrated Bottle Opener
- Compatibility with UDH and Transmission hangers/mechs (spare parts available separately)
- 25mm velcro strap to fit all seat post sizes and shapes
- Quick flip system provides maximum wheel clearance across all bike sizes
- ISO tested up to 30kg load
- Lightweight construction of just 395g
- Made in the UK

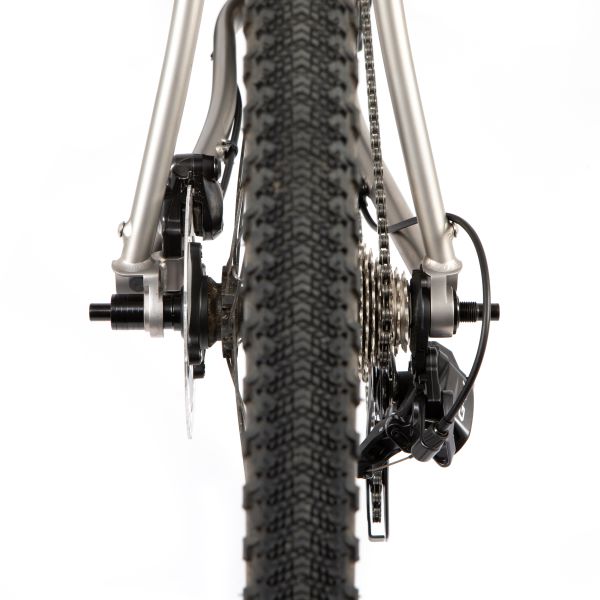

Fitting the Switch axle:
- Remove your bike’s current thru-axle
- Remove M5 bolts from both ends of Restrap Switch thru-axle

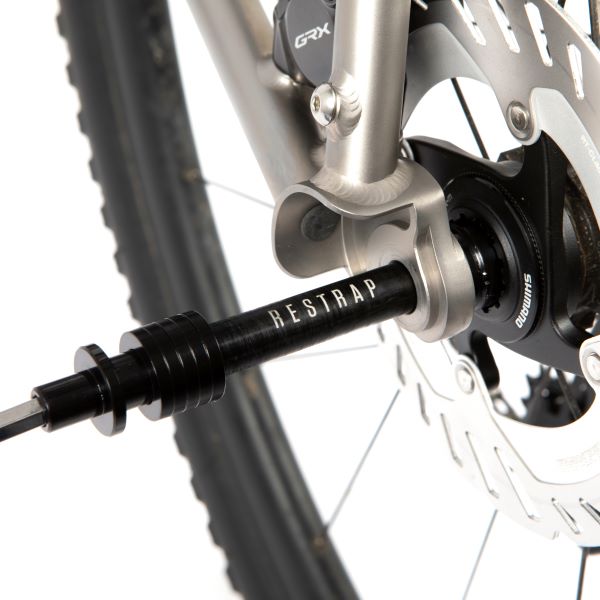

- Fit the Restrap Switch thru-axle using a 6mm allen key. Use as many 3mm washers as necessary to centralise the top bar over the rear wheel
- Use the supplied axle cone spacer for compatible frames
Fitting the Switch Rack:

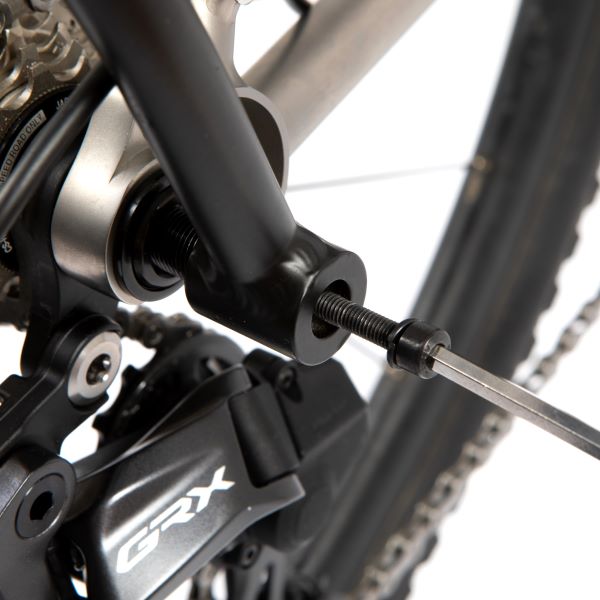

- Slot rack legs over either end of the axle
- Screw in M5 bolts to secure

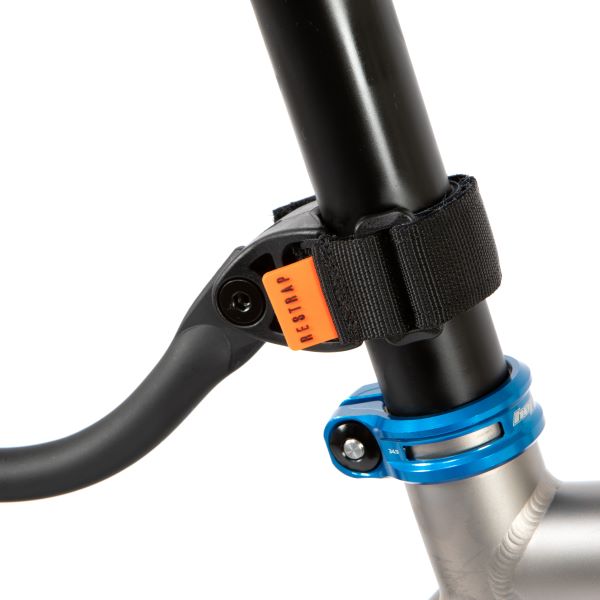

- Use velcro strap to secure the top bar to either the seatpost or seat tube

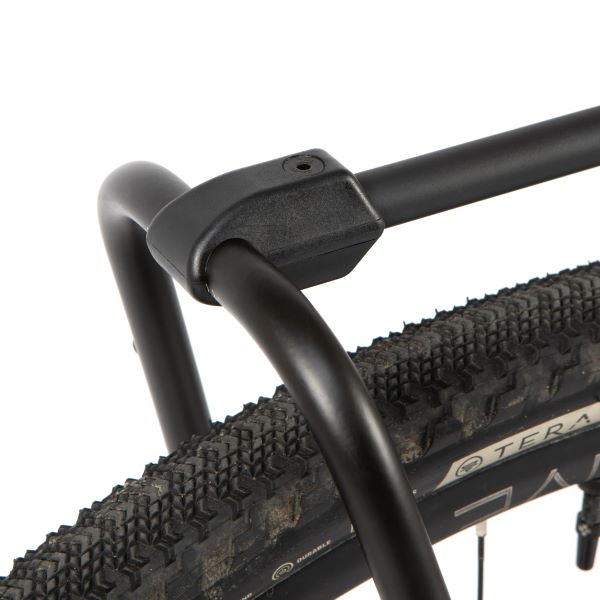

Tailoring fit:
- Quick flip system allows you to flip the top bar to maximise wheel clearance and provide a range of seat post or frame mounting points.
- Use a 3mm allen key to completely remove the bolt from the tube clamp
- Slide the top bar out, rotate 180 degrees and then replace
- Make sure bolt holes line up, then replace bolt and tighten
Compatibility:
- Only compatible with bikes with a 12mm diameter thru-axle
- Compatible with bikes with 142mm or 148mm (Boost) spacing
- Not designed for use with full-suspension frames
- IMPORTANT – ensure axle thread pitch matches your bike. Do not attempt to fit without the correct thread pitch.
- UDH – bikes with a UDH derailleur will require a Restrap Switch UDH adapter (available separately)
